What is a Level 2 EV Charging Station?
An essential component of the EV ecosystem, a Level 2 EV charging station is a common and essential piece of infrastructure for charging electric vehicles. In a nutshell, it is the common, quicker charging option that connects slow trickle charging to ultra-fast public direct current (DC) stations and is found in homes, offices, and public spaces. Because it runs on a higher voltage electrical circuit than a typical home outlet, it significantly cuts down on the amount of time required to recharge an EV’s battery, making daily use of EVs feasible.
Definition and Basic Working Principle
A Level 2 charging station is defined by its use of 208-240 Volt Alternating Current (VAC) power to deliver electricity to an electric vehicle. Knowing the difference between AC and DC power is essential to comprehending how it works. While an electric vehicle’s battery can only store DC power, the electrical grid provides AC power. Instead of converting power, a Level 2 station—officially called an Electric Vehicle Supply Equipment (EVSE)—operates as an advanced and secure “smart” extension cord. It transfers the vehicle’s AC power from the grid. The onboard charger, which is a crucial part of the electric vehicle itself, is what actually transforms the AC power into the DC power that the battery can accept. The EVSE’s job is to manage the delivery of power safely, communicating with the car to ensure everything is working correctly before initiating and during the charging session.
Power Output and Charging Speed
Although the most popular units for residential and public use are in the 7kW to 11kW range, Level 2 chargers can produce power in the usual range of 3.7 kW to 19.2 kW. By multiplying voltage by amperage, this power is computed. In North America, commercial installations may use 208 volts from a three-phase system, while residential units usually use a 240-volt circuit (like an electric dryer or oven). A 230-volt single-phase system or a more potent 400-volt three-phase system, which permits higher power ratings, are frequently used for Level 2 charging in Europe and many other regions of the world. This effectively means that a Level 2 station can recharge an EV considerably more quickly than a simple Level 1 (120V) charger. While a Level 1 charger might only add 3-5 miles of range per hour, a Level 2 charger can add 20 to 60 miles of range per hour. For a typical modern EV with a medium-sized battery, a Level 2 station can fully replenish the battery from empty in approximately 4 to 8 hours, making an overnight charge at home perfectly feasible.
Connector Standards
Level 2 charging uses standardized connectors to guarantee compatibility across various car brands. The SAE J1772 connector, commonly referred to as the “J-plug,” is the industry standard for all Level 1 and Level 2 charging in North America. With the exception of Tesla, every new electric car sold in North America has a J1772 inlet. Although they come with a proprietary connector, Teslas can be easily charged from any public or private J1772 station by using a straightforward adapter. The Type 2 connector, commonly referred to as Mennekes, is the industry standard for AC charging in Europe and other regions. An EV driver can pull up to almost any Level 2 public charger with confidence and expect it to connect to their car without any problems thanks to this broad standardization.
Primary Application Scenarios

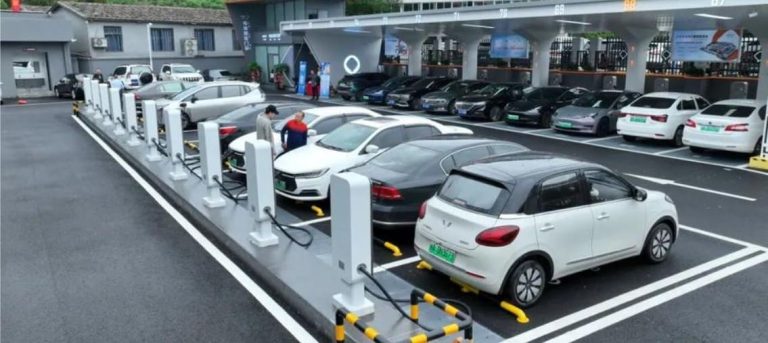

The versatility of Level 2 charging stations makes them suitable for a wide array of locations. Their most impactful application is in residential settings, particularly in single-family homes where owners can install a station in their garage or driveway. This allows them to conveniently charge their car overnight, waking up to a “full tank” every morning. Multi-unit dwellings like apartment complexes and condominiums are increasingly installing Level 2 stations in their parking areas as a critical amenity to attract and retain tenants. Workplaces are another ideal location; providing charging stations allows employees to top up their batteries while they work, effectively doubling the daily range their car can achieve without any extra effort. Furthermore, public and commercial venues such as shopping malls, retail stores, restaurants, hotels, and hospitals deploy Level 2 chargers. For these businesses, offering charging is a powerful way to attract affluent EV-driving customers and encourage them to stay longer and spend more money while their vehicle is being charged.
Advantages and Key Features
The main benefit of a Level 2 station over a Level 1 is its significantly faster charging speed, which makes it possible to use an electric vehicle on a daily basis. Level 2 chargers are perfect for widespread deployment because they are significantly less expensive to install and require less power from the electrical grid than DC fast charging stations. Long-term, they are also kinder to the car’s battery because frequent DC fast charging can hasten battery deterioration. The value of contemporary smart Level 2 stations is increased by their sophisticated features. They frequently support open communication protocols like the Open Charge Point Protocol (OCPP) and incorporate power factor correction for economical grid electricity use. OCPP allows the charger to connect to a network management system, enabling crucial functions like dynamic load management. This means if a home or building has multiple chargers, the system can intelligently distribute available power between them to avoid overloading the main electrical panel. It also enables features such as remote monitoring, access control, and detailed usage reporting.
Safety and Communication Functions
Several layers of protection are included in Level 2 EVSEs because safety is of the utmost importance. In North America, they must adhere to safety regulations such as UL 2231 and UL 2594 and undergo extensive testing. They include safety features like surge suppressors, overcurrent circuit breakers, and—most importantly—a ground fault circuit interrupter. Through a control pilot wire, the station performs a handshake with the vehicle and continuously checks the connection. Only after this communication verifies that the connection is safe, there are no issues, and the car is prepared to take a charge will electricity start to flow. With no exposed metal pins that are live when unplugged, the physical connector is likewise made to be safe and ergonomic. The communication capabilities extend beyond basic safety; smart stations can connect to Wi-Fi or cellular networks to provide users with a smartphone app for remote start/stop, scheduling charging for off-peak electricity rates, and receiving notifications. For station operators, this connectivity allows for remote diagnostics, over-the-air (OTA) software updates, and streamlined billing processes.
