Can You Charge an EV on a 240V Outlet?

Can You Charge an EV on a 240V Outlet? In fact, using a 240-volt outlet to charge an electric vehicle is the most popular and advised method for charging at home. When done properly, it offers the ideal balance of speed, convenience, and safety.

Understanding Level 2 Charging: The Power Behind 240V

A standard household outlet in North America provides 120 volts of alternating current (AC), which is known as Level 1 charging. While usable, it is very slow, typically adding only 3-5 miles of range per hour. A 240V outlet, on the other hand, is the foundation of Level 2 charging. This voltage is essentially what powers large appliances in your home, like an electric dryer, oven, or welder.

The jump from 120V to 240V is significant because it doubles the voltage, which in turn allows for a much higher power output (measured in kilowatts, or kW) when combined with sufficient amperage. For example, a common 240V outlet is the NEMA 14-50, often used for electric ranges. This outlet can deliver 240 volts at 50 amps. Following the National Electrical Code (NEC) rule that continuous loads should not exceed 80% of a circuit’s rating, this outlet can safely support a 40-amp continuous draw. This translates to 9.6 kW of power (240V x 40A = 9,600W). At this rate, most EVs can add 25-35 miles of range per hour of charging. This means you can fully replenish your daily commute in just a few hours overnight, making EV ownership far more practical and eliminating any range anxiety for daily use.

The Essential Hardware: EVSE and Outlet Compatibility

To charge your EV from a 240V outlet, you need two key pieces of hardware: a compatible outlet and an Electric Vehicle Supply Equipment (EVSE), which is often mistakenly called the “charger.”

First, the outlet type must match the plug on your EVSE. Common 240V outlet types include:

NEMA 14-50: This is a four-prong outlet (two hot wires, a neutral, and a ground) and is the most popular choice for EV charging due to its 50-amp rating and widespread availability.
NEMA 6-50: A three-prong outlet (two hot wires and a ground) often found in workshops for welders or air compressors. It’s also a common option for EVs.
NEMA 10-30: An older, three-prong dryer outlet (two hot wires and a neutral, no dedicated ground) that is not recommended for new installations due to its lack of a separate ground wire.

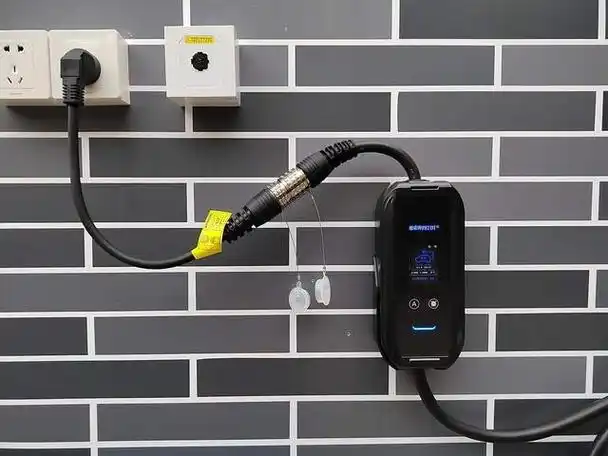

Second, you need the EVSE unit. Every EV comes with a portable Level 1/Level 2 EVSE that often includes adapters for different 120V and 240V outlets. For example, Tesla’s Mobile Connector can be ordered with a NEMA 14-50 adapter. You can also purchase a dedicated, hardwired Level 2 charging station. These stations are permanently connected to your home’s electrical circuit (bypassing an outlet entirely) and can sometimes deliver slightly higher amperage (e.g., 48 amps vs. 40 amps on a 50-amp outlet), resulting in faster charging.

Professional Installation: The Non-Negotiable Safety Step

While plugging an EVSE into an outlet is simple, the installation of the 240V outlet itself must be performed by a licensed electrician. This is not a DIY project. The electrician will:

Assess Your Electrical Panel: They will determine if your home’s main electrical service panel has enough spare capacity to add a new 240-volt circuit. An older home with a 100-amp service panel might require an upgrade to 200 amps, especially if you have other high-demand appliances.
Run the Correct Wiring: They will install the appropriate gauge of copper wire from the panel to the outlet location. A 50-amp circuit typically requires 6-gauge wire, while a 40-amp circuit may use 8-gauge. Using undersized wire is a major fire hazard.
Install a Dedicated Circuit: The new outlet must be on its own dedicated circuit breaker in the panel. No other lights or outlets should share this circuit.
Ensure Proper Grounding: Correct grounding is critical for safety, preventing the risk of electrocution.
Obtain Permits and Inspections: A professional will ensure the work is permitted and inspected by your local authority, guaranteeing it meets all national and local electrical codes (NEC). This is crucial for your safety and is often required for your home insurance to remain valid.

The Transformative Benefits of 240V Home Charging

Investing in a 240V outlet for EV charging transforms the ownership experience:

Overnight Full Charges: Even if you drain your battery completely during the day, a Level 2 charger will almost certainly have it back to 100% by the next morning.
Leverage Time-of-Use Rates: Many utility companies offer significantly lower electricity rates during off-peak hours (usually overnight). With a 240V charger, you can schedule your charging to occur entirely during these super-cheap periods, drastically lowering your “fueling” costs. A 120V charger often can’t add enough energy in a short enough time window to take full advantage of these rates.
Convenience and “Gas Station” Reality: You will never need to visit a public charger for your daily driving needs. Your car starts every day with a “full tank of gas,” making it more convenient than a gasoline car.
Increased Home Value: As EVs become ubiquitous, a installed 240V outlet or charging station is becoming a valued feature for homebuyers.

Conclusion: The Standard for Home EV Ownership

Not only is it possible to charge your EV using a 240V outlet, but it is also the most common and advised way to do so at home. It offers the ideal balance of cost-effectiveness, speed, and efficiency.

The procedure is simple: install the proper 240V outlet on a dedicated circuit after consulting with a licensed electrician to determine your home’s electrical capacity. After that, you can either purchase a specialized home charging station or use the EVSE that came with your vehicle. By ensuring that your car is always charged and ready to go, all from the comfort of your own garage, this one-time setup cost fully unlocks the potential of owning an electric vehicle and pays for itself in savings and convenience.
